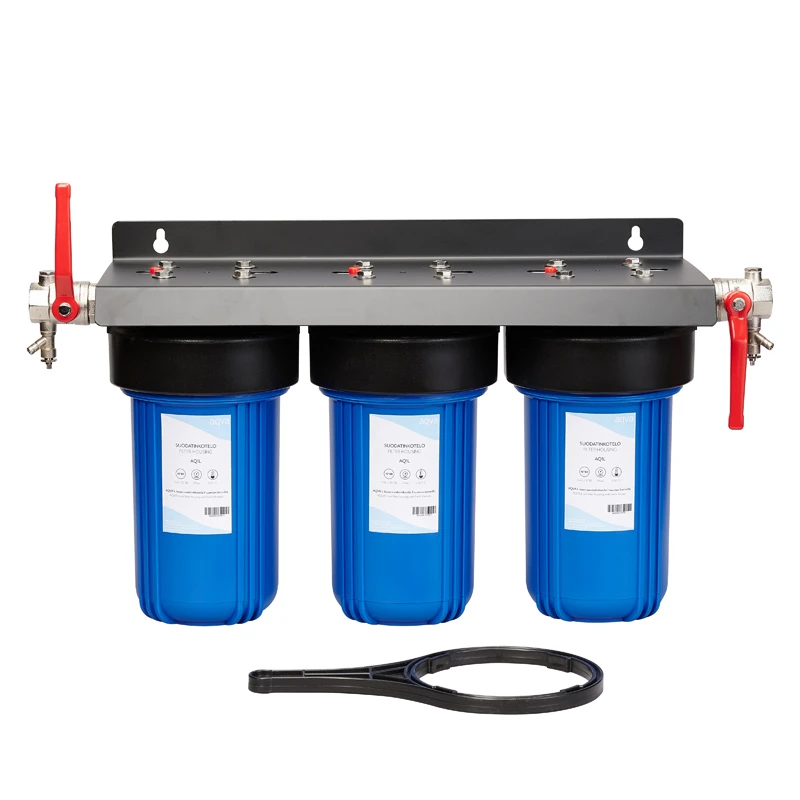

AQVA L size filtration system, 3 housings

The set contains 3 filter housings that can be used to create a unique filter combinations. For example, for sediment filter, activated carbon filter and iron filter. This housing is designed for cold water and generally for 1-2 water outlets. Perfect for summer house, municipal water, card card-body water or lake water.

Benefits

Water is simultaneously filtered for several water outlets

Replacing the filters is easy

Pressure release button helps to loosen the housing

Replacement filters

Compatible with all Aqva L size (standard 10” x 4 ½”) in-line filter cartridges

Contents

3 filter housings

wrench

wall mounting bracket

4 housing connectors

2 closing valves

Technical specifications

Threads: 1”

Size: housing H 59 cm x W 72 cm + mounting bracket H 4 cm

Operating temperature: 2-30 °C

The closing valves include a water sampling valve

Please refer to the user manual found in 'Uploaded files'

System requirements

Constant feed pressure, 2-10 bar.

Water feed and pressurized water vessel.

Cold storage

When temperatures drop below 2 °C the water network should be closed, and in-line filter housings emptied to prevent frost damage.
