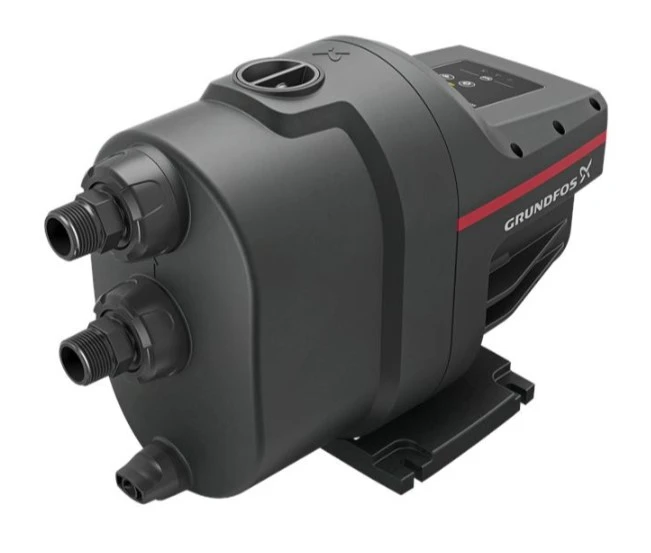

Grundfos Scala1 5-55 Pressure Pump

Grundfos SCALA1

A fully integrated, self-priming, compact water pump suitable for all types of water pressure boosting, including excellent performance for supplying or distributing water in reverse osmosis systems.

Benefits

• Compact design

• Extremely quiet – typical noise level of only 47 dB(A), comparable to a modern dishwasher

• Smart control – adjustable constant pressure

• Water-cooled permanent magnet motor

• Dry-run protection

• Self-priming up to 8 m

• Clear and simple control panel

• Easy drainage and venting

• All-in-one solution – easy to install

Technical Specifications

• Voltage: 1x200–240 V, 50 Hz

• Max. suction depth: 8 m

• Max. lift height: 52 m

• Max. operating temperature: +55 °C

• Max. liquid temperature: +45 °C

• Max. system pressure: 10 bar

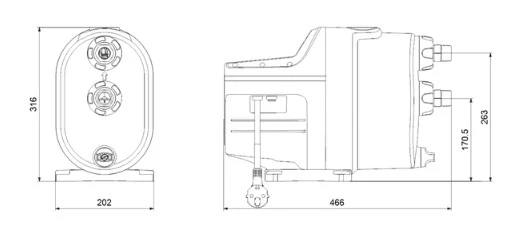

• Dimensions: widht 20 cm, lenght 46,6 cm, height 32 cm

• Weight: 14 kg

• Connections: 1" male thread

*Note: The pump may not be suitable for long-term, continuous low-flow applications, such as filling a buffer tank for a reverse osmosis system without a booster pump. In such cases, the pump may occasionally overheat, causing the automation to shut it off.
