AQVA XL / 20 BB filter package multi-purpose

AQVA XL-Size Combination Filter Package

Versatile Water Purification for Arsenic, Odors, and Humus Reduction

The AQVA XL-size combination filter package is an excellent all-purpose water purifier designed to reduce arsenic, odors, tastes, and humus. Featuring KDF oxidation-reduction media with mild ion-exchange properties and traditional activated carbon, this filter effectively addresses a wide range of odor and taste issues, including mild hydrogen sulfide smells.

This filter also reduces arsenic, a harmful contaminant even in small amounts. Concentrations above 100 µg/L can be detrimental in household and bathing water. Depending on the type of arsenic, the filter removes 30–70% of the arsenic content. For optimal arsenic removal in drinking and cooking water, we recommend a compact reverse osmosis unit, available in our reverse osmosis product range.

Benefits:

• Enhances household water quality

• Reduces arsenic, odors, tastes, and humus

• Easy maintenance

• No drainage required

Filtration and Purification Process:

The combination filter, with KDF oxidation-reduction media and activated carbon, removes a variety of contaminants, including heavy metals, organic compounds, and mild hydrogen sulfide, while addressing odor and taste issues.

Removes from Water:

• Lead

• Arsenic

• Cadmium

• Mercury

• Hydrogen sulfide

• Iron

• Limescale

• Phenols

• Chlorine

Technical Specifications:

• Filter lifespan: Approximately 104,500 liters (dependent on overall water quality)

• Typical maximum flow rate: 15 liters per minute

• Recommended maximum humus content: 10 mg/L (COD) and 40 mg/L (KMnO4)

• Recommended maximum arsenic content for drinking/cooking water: 10 µg/L (reduction)

• Recommended maximum arsenic content for household/bathing water: 100 µg/L (reduction)

• Pressure drop: 0.10 bar at 10 liters per minute

• Maximum operating pressure: 6 bar

• Connection size: 1” internal threads

• Product dimensions: Housing H 59 cm x W 19 cm + wall-mount bracket H 13 cm

• Operating temperature: 2–30°C

• Compatible with standard AQVA XL-size filter cartridges

Replacement Filter:

• Replacement Filter Cartridge: AQKDF-XL
  Replace the filter when water flow decreases, water quality changes, or the filter reaches its lifespan, indicating clogging or reduced effectiveness. If you notice changes in purified water quality, we recommend conducting a follow-up water analysis of the raw water.

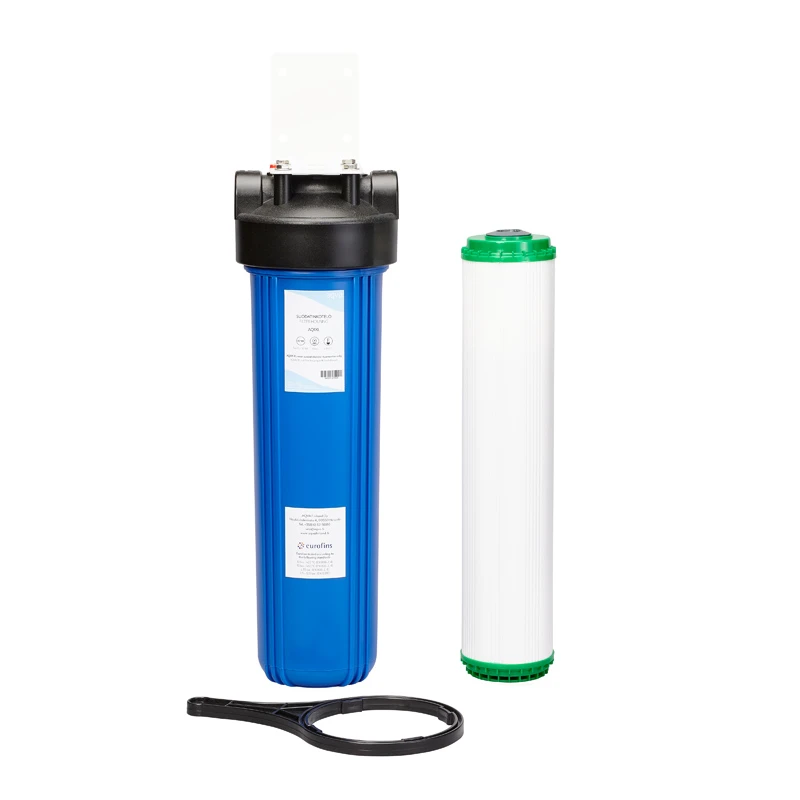

Package Contents:

• AQVA XL-size filter housing (AQ1XL-H)

• Mounting bracket

• Housing wrench

• Combination filter (AQKDF-XL)

System Requirements:

• Consistent inlet pressure: Up to 6 bar

• Water supply to the purifier, typically installed after a diaphragm pressure tank or pump in the water line

• Refer to the user manual under the “Downloaded Files” tab

Winter Storage:

In winter, if temperatures drop below 2°C, close the water lines and drain the filter housing to prevent frost damage.
