AQVA XL / 20 BB filter package, active carbon

AQVA XL-Size Fibrous Activated Carbon Filter Package

High-Capacity Water Purification for Odor and Chemical Reduction

The AQVA XL-size fibrous activated carbon filter package is designed to improve household water quality by effectively reducing musty and earthy odors and tastes. It also removes heavy metals, chemical residues, and other contaminants, making it ideal for purifying well water, municipal water, or natural water sources.

For water with hydrogen sulfide (rotten egg smell), a separate hydrogen sulfide filter (AQ1XL-CAT) is available.

Benefits:

• Enhances household water quality

• Reduces odors, tastes, and chemical contaminants

• Easy maintenance

• No drainage required

Filtration and Purification Process:

The fibrous activated carbon filter removes musty and earthy odors, tastes, heavy metals, chlorine, pesticides, solvents, hydrogen sulfide, radon, and other organic compounds.

Removes from Water:

• Odors

• Tastes

• Heavy metals

• Chlorine

• Pesticides

• Solvents

• Hydrogen sulfide

• Radon

• Organic compounds

Technical Specifications:

• Estimated filter lifespan: 6–12 months

• Typical maximum flow rate: 15 liters per minute

• Pressure drop: 0.10 bar at 10 liters per minute

• Maximum operating pressure: 6 bar

• Connection size: 1” internal threads

• Product dimensions: Housing H 59 cm x W 19 cm + wall-mount bracket H 13 cm

• Operating temperature: 2–30°C

• Compatible with standard AQVA XL-size filter cartridges

Replacement Filter:

• Replacement Filter Cartridge: AQCF-XL

• Replace the filter when water flow decreases, water quality changes, or after 6–12 months, indicating clogging or reduced effectiveness. If you notice changes in purified water quality, we recommend conducting a follow-up water analysis of the raw water.

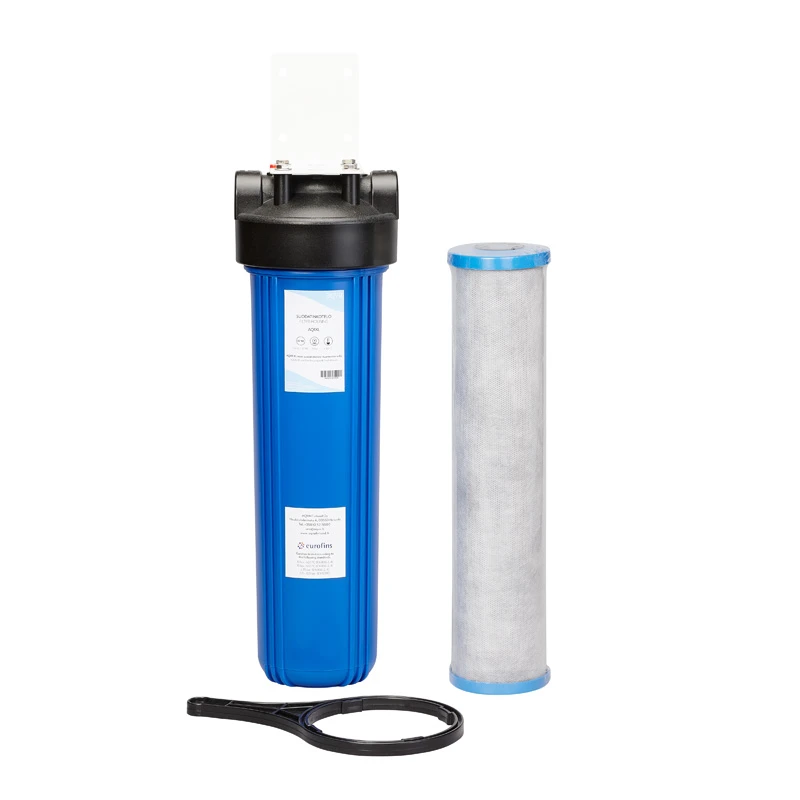

Package Contents:

• AQVA XL-size filter housing (AQ1XL-H)

• Mounting bracket

• Housing wrench

• Fibrous activated carbon filter (AQCF-XL)

System Requirements:

• Consistent inlet pressure: Up to 6 bar

• Water supply to the purifier, typically installed after a diaphragm pressure tank or pump in the water line

• Refer to the user manual under the “Downloaded Files” tab

Winter Storage:

In winter, if temperatures drop below 2°C, close the water lines and drain the filter housing to prevent frost damage.
