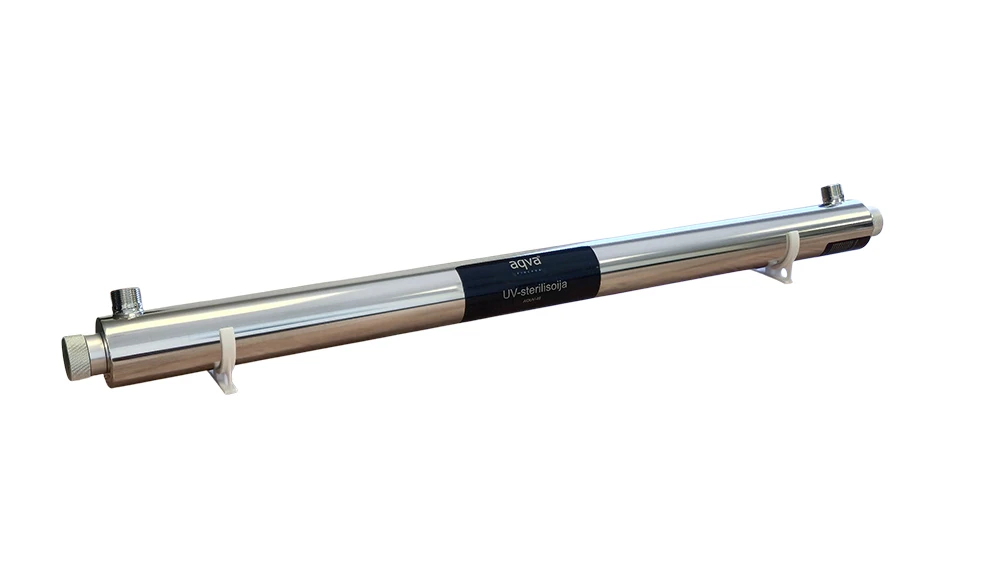

AQVA UV Sterilizer
The UV sterilizer operates based on water flow through a main pipe. Bacteria in the water are exposed to high-energy ultraviolet radiation. This radiation breaks down the bacteria's structure, preventing reproduction or harmful effects. The water flow rate must remain below the recommended level to ensure sufficient exposure time.
Benefits
- The UV lamp inside the sterilizer is replaced approximately every 8,000 hours, or roughly once a year.
- Malfunction alert with sound and transformer light.
- Eliminates bacteria from water.
Package Contents
- Stainless steel pipe for UV light and quartz tube
- UV light
- Quartz tube
- Transformer
- Wall mounting brackets
- Seals
Technical Specifications
- Water inlet connection: 3/4"
- Inlet water temperature: +2 °C to +40 °C
- Installation site temperature: +5 °C to +40 °C
- Maximum waterflow 45 l/min
- Humidity: < 70%
- Voltage: 220–240 V
- Power: 55 W
- Dimensions: Length 97 cm, diameter 6.3 cm
- Material: Stainless steel (SS304)
System Requirements
- Water supply pressure: 1–8 bar
- Must be installed indoors
- Water must be free of solid particles. If solid particles are present, a particle filter must be installed in the water line before the UV sterilizer. A 1µm particle filter effectively removes solids from water.
- Refer to the user manual under the "Files" tab
Winter Storage
In winter, if temperatures drop below 2 °C, to prevent frost damage, the water lines must be closed, and the system drained of water.
