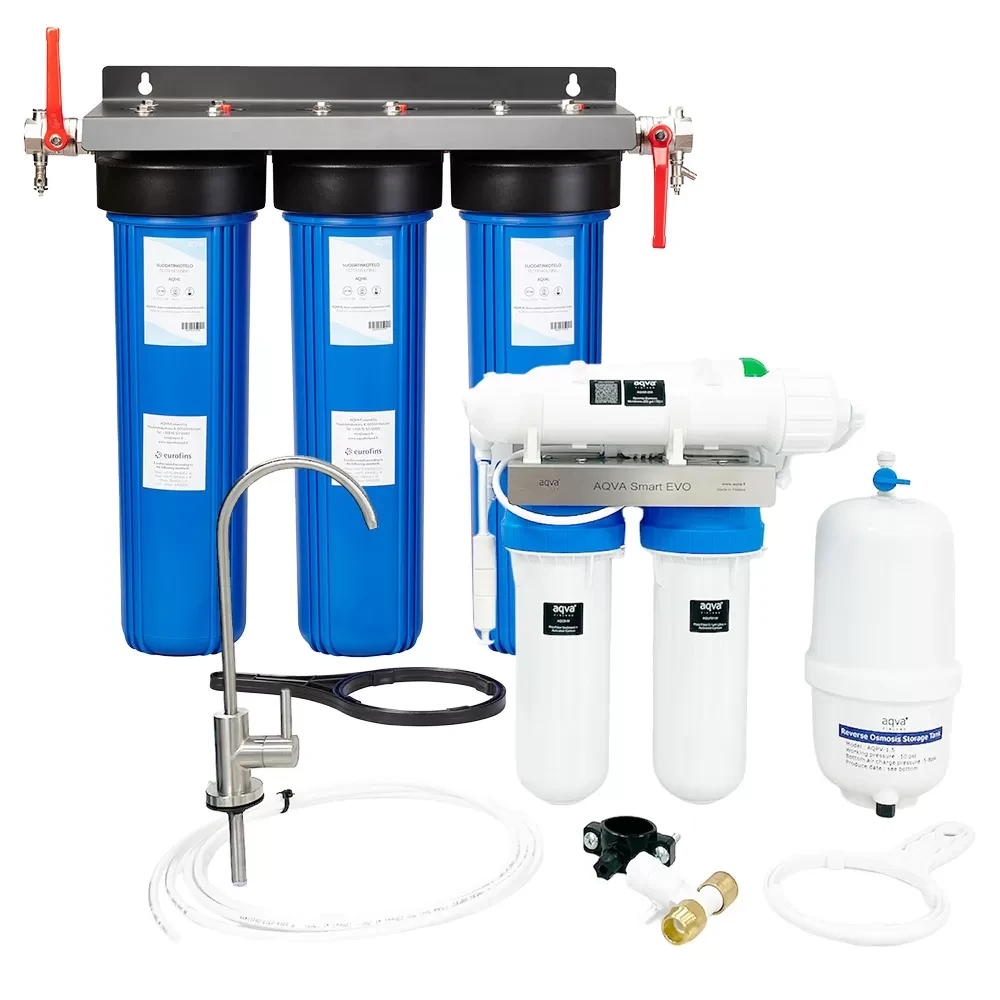

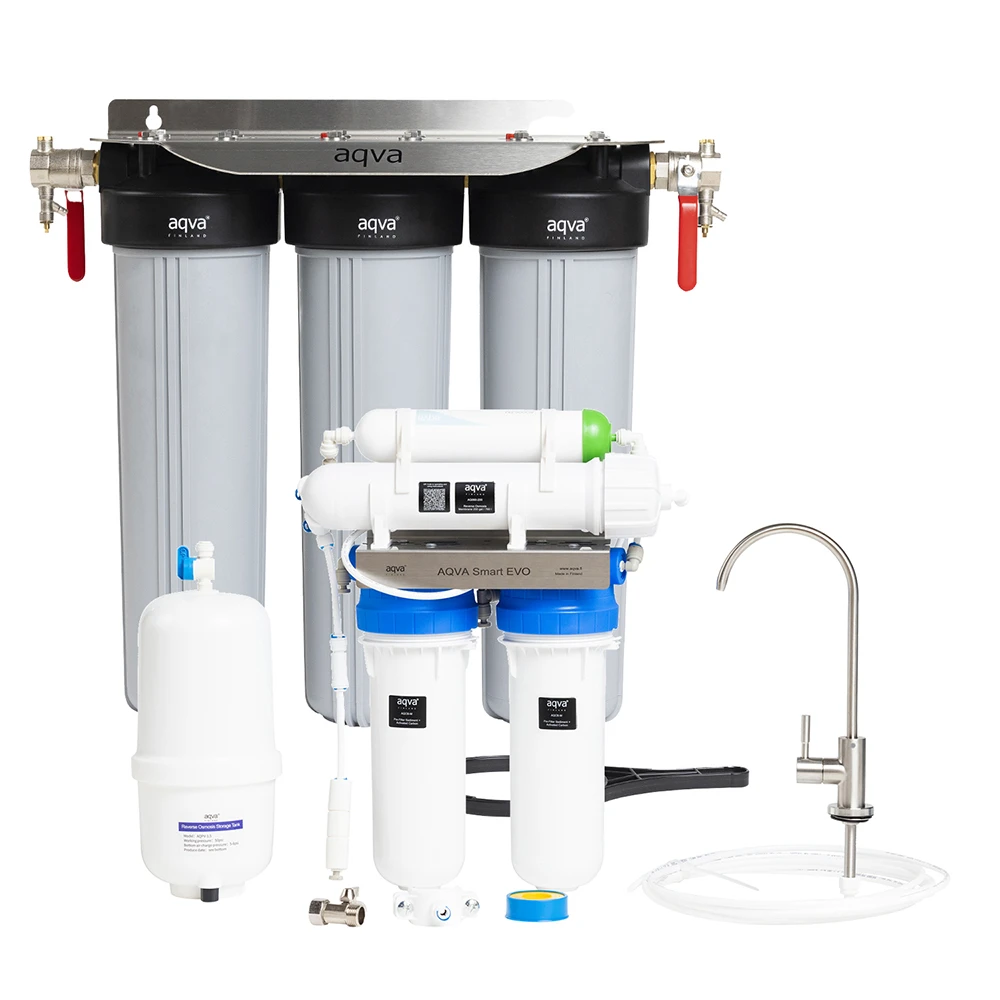

AQVA Smart EVO+ package including drinking- and domestic water purification, XL-size

Lake and Well Water Filter Package

Produces clean drinking water for one water point and improves the quality of utility water for 1–4 water points.
The package includes a two-stage purification process:

• Line Filter Package for turning lake or well water into utility water: AQ3XL + filters.
• AQVA Smart EVO Reverse Osmosis Unit for drinking water. Includes a high-quality AQVA TOM+ stainless steel clean water tap.

1. AQVA XL Line Filter Package

• Designed to filter humus, odors, and tastes, as well as iron and manganese.
• Stage 1: Removes visible and invisible suspended solids with a 1µm (1/1000th of a millimeter) fine filter. This stage also reduces approximately 30% of dissolved humus.
• Stage 2: Primarily filters humus, and to some extent iron and manganese, using the AQVA MAX filter, which is based on a large-surface-area ion-exchange fiber.
• Stage 3: Finalizes water purification with a large-surface-area activated carbon block, filtering various organic and inorganic compounds, odors, and tastes, as well as some humus.

Technical Features:

• Filter Housing: AQVA XL size, 20" BB.
• Connections: 1" internal brass-reinforced fittings.
• No Electricity Required.
• No Drainage Needed.
• Easy to Install and Use.
• Includes Housing Wrench.
• Installation: Typically installed after the pressure tank, before the property’s water distribution system.
• Eurofins Certified for construction.
• Wall-Mountable.
• Made in the EU.
• Dimensions: H 630 x W 540 x D 220 mm.

Filtration Features:

• Typical Flow Rate: Up to 15 liters per minute. Higher flow is possible, but filtration efficiency may temporarily decrease.
• Typical Pressure Drop: 0.5–1.0 bar at a flow rate of 10 liters per minute (affected by filter usage).
• Operating Pressure: 2–10 bar. For higher pressures, a pressure reduction valve can be installed.
• Maximum Iron Content: Up to 4 mg/L (4000 µg/L), recommended 2 mg/L.
• Maximum Manganese Content: Up to 0.6 mg/L (600 µg/L), recommended 300 µg/L.
• Recommended Maximum Humus Content: COD 15 mg/L (40 mg/L KMnO4). The product can handle higher humus levels, but filter clogging may occur faster.

Replacement Filters and Theoretical Lifespans:

• Product Code: AQMF1-XL (1µm fine filter): Approx. 36,000 liters.
• Product Code: AQ052X (AQVA MAX): Approx. 40,000 liters at COD 5 mg/L humus content.
• Product Code: AQCB-XL (Activated Carbon Filter): Approx. 120,000 liters.
• Note: Overall water quality and seasonal variations may affect performance and lifespan.

2. AQVA Smart EVO Reverse Osmosis Unit for Drinking Water (AQ006-EVO)

Benefits:

• Produces near-pure drinking water, regardless of raw water quality.
• Cost-Effective Standard Filters and Osmosis Membrane: Replaced annually.
• Separate Membrane Pressure Tank: Can be replaced or upgraded to a larger tank for greater clean water storage.
• Water Hygiene: Filtered through a 0.1µm activated carbon filter and post-purified/mineralized before dispensing.
• Separate Membrane Pressure Tank and Purification Unit: Simplifies placement.
• Quick and Easy Filter Replacement.
• High Clean Water Production Capacity: Up to 768 liters per day (32 liters per hour).
• In reverse osmosis, water molecules pass through a purification membrane, while impurities are automatically flushed away with wastewater (clean water production ratio ~1:3). The package includes the reverse osmosis unit, water tank, necessary hoses, fittings, and a dedicated stainless steel tap (Product Code: AQ007-1). The tap can be installed, for example, in a 12 mm hole on a sink.
• Production Capacity: With an average water quality and 4 bar feed water pressure, produces ~768 liters of purified water per day. The flow rate is moderate, so the unit includes a 2-liter tank (usable volume ~1.7–2 liters), which it automatically keeps full. When water is used (e.g., for cooking), the unit refills the missing volume in ~4 minutes, enabling near-continuous use.
• Installation: Typically placed in a kitchen cabinet and connected to the cold water line or dishwasher line using the included three-way connector.

Removes:

• Bacteria, viruses, protozoa
• Manganese
• Sulfur, hydrogen sulfide
• Iron
• Uranium, radon*
• Fluoride, chloride
• Odors and taste issues
• Pipe-related impurities
• Restores minerals (calcium and magnesium) post-purification
• Raises water pH through remineralization
• Softens water
• Hormones, antibiotics, and pharmaceutical residues
• Pollutants
• Color
• Note: Gaseous impurities are filtered by pre-filters. High levels may require separate pre-filtration.

Replacement Filters:

• Pre-Filter: AQCB-M
• Osmosis Membrane: AQ060-200
• Post-Filters:
• Mineralization: AQ006-PM
• Activated Carbon / 0.1µm Sterilization: AQUF01-M

AQVA Smart EVO Dimensions:

• Purification Unit: H 320 x W 380 x D 150 mm.
• Membrane Pressure Tank: Diameter 14 cm, Height 33 cm.
• Clean Water Tap Base: Diameter 4.1 cm.
• Maximum Countertop Thickness: 45 mm.
• Tap Mounting Hole: 12 mm diameter.

Winter Storage:

• The reverse osmosis unit can be stored in winter by capping the water lines and moving it to a warm location.
• In spring, run water through the unit for ~30 minutes to flush the membranes before normal use.
