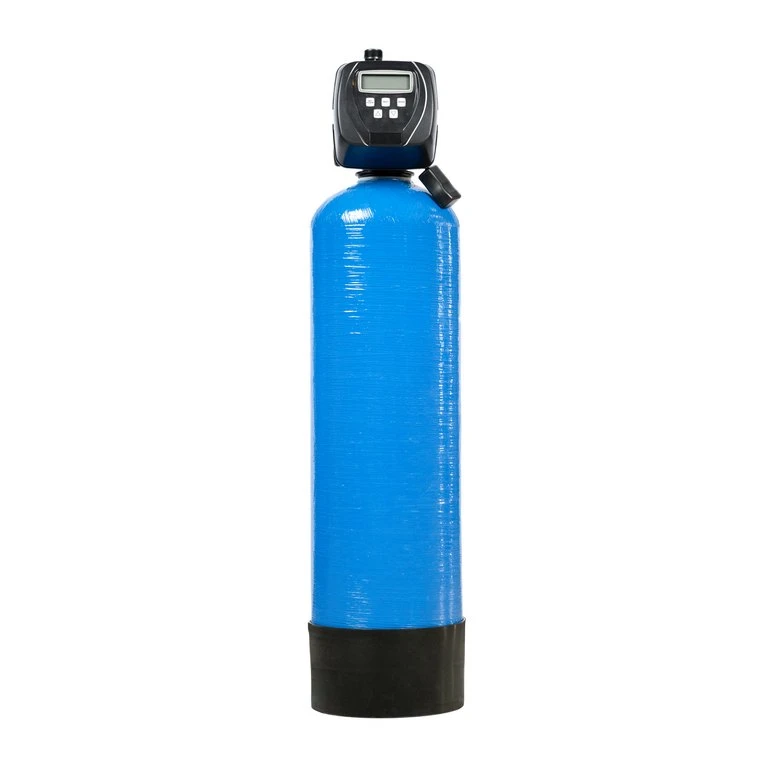

AQVA Sand filter, down to 5µm

Solids Filter with Automatic Backwash

Benefits:

• The filter media used in the unit is clinoptilolite, a natural mineral sand with a dirt and solids retention capacity over 100 times greater than traditional sand filters.
• The product is suitable for removing all types of dirt and solids from well, natural, or process water. For more detailed information, contact AQVA water purification sales.
• The device typically removes all solids and particles down to 5µm, equivalent to 1/200th of a millimeter.
• The unit is controlled by a high-quality Clack automatic valve.

Technical Specifications:

• Inlet and outlet water connections: 1" external threads
• Typical pressure drop at 12 liters per minute flow: less than 0.2 bar
• Height: 1140 mm, depth: 350 mm, width: 290 mm
• Filter tank base diameter: 280 mm
• Backwash water consumption per 15-minute cleaning cycle: 450 liters
• Power consumption: 30W
• Power supply: 230VAC
• Operating pressure: 2–6 bar
• Typical recommended flow rate: 25 liters per minute
• The filter requires manual flushing 3–4 times before directing water onward.
