AQVA M / 10" filter package, 1µm sediment filter

M-size One Micron Fine Filter Package

Cost-Effective Pre-Filter for Enhanced Water Quality

The AQVA 1-micron fine filter package is an affordable pre-filter solution designed to protect water appliances and extend the lifespan of more expensive filters. This water purifier effectively removes solids such as sand, clay, and other sediments, preventing them from entering water systems. Sized for simultaneous use at 1–3 water outlets, it’s ideal for clarifying municipal water, well water, and natural water sources.

Benefits:

• Improves the quality of household water

• Easy maintenance

• Pressure relief button simplifies housing opening

• No drainage required

The polypropylene fine filter removes visible and invisible solids down to 1 micron (1/1000th of a millimeter). It also reduces approximately 30% of dissolved humus in water.

Filters:

• Sand

• Solids

• Organic matter

• Sediments

Replacement Filter:

Replace the filter when water flow decreases or the output pressure from the filter approaches zero, indicating clogging.

• Replacement Filter Cartridge: AQMF1-M

• Estimated lifespan: Approximately 12,000 liters*

• *Filter lifespan depends on raw water quality.

If you notice changes in the quality of purified water, we recommend conducting a follow-up water analysis of the raw water.

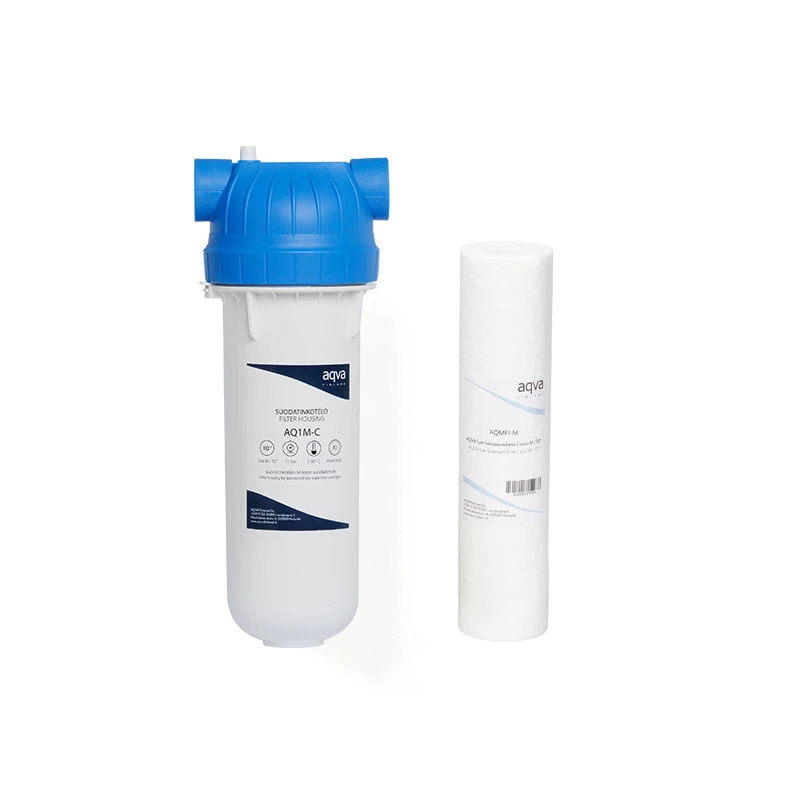

Package Contents:

• Filter (AQMF1-M)

• Filter housing (AQ1M-C)

• Housing wrench

• Wall-mount bracket

Technical Specifications:

• Connection size: 3/4” threaded connection

• Product dimensions: Housing H 32 cm x W 13 cm + wall-mount bracket H 4 cm

• Operating temperature: 2–30°C
• Max flow throught the filter is 20 l/min

• Compatible with standard 10” inline filter cartridges in AQVA M-size housing

• Features a pressure relief button for easy housing opening

• Refer to the user manual under the “Files” tab

System Requirements:

• Consistent inlet pressure: 2–10 bar

• Typically installed after a diaphragm pressure tank or pump in the water line

• Water supply to the purifier

• Pre-filtration unit: For water sources like lake water, we recommend a washable pre-filter (S-1504) at the water intake to prevent large debris and fish from entering the water line

Winter Storage:

• In winter, if temperatures drop below 2°C, close the water lines and drain the inline filter housing to prevent frost damage.
